Message queues

Table of Contents

• Java Messaging Service
• Connect to a JMS queue
• References

Java Messaging Service

" JMS is an API for messaging services provided by some messaging technologies. Messaging provides a decoupled, scalable, robust, and proven way to distribute messages to possibly unknown consumers. The Event-Driven Architecture (EDA) and the Event-Delivery Network (EDN) are based on the same concepts and largely the same infrastructure—yet they operate on a slightly higher level, more business event oriented and somewhat abstracted away from J(2)EE technology. "
-- in Lucas Jellema, "Oracle SOA Suite 11g Handbook", McGraw-Hill Companies, June 2011, pp. 383

" The Java Message Service (JMS) API is a Java Message Oriented Middleware (MOM) API for sending messages between two or more clients. JMS is a part of the Java Platform, Enterprise Edition, and is defined by a specification developed under the Java Community Process as JSR 914. It is a messaging standard that allows application components based on the Java Enterprise Edition (JEE) to create, send, receive, and read messages. It allows the communication between different components of a distributed application to be loosely coupled, reliable, and asynchronous. "
-- in Wikipedia, http://en.wikipedia.org/wiki/Java_Message_Service

Connect to a JMS Queue

1. Create a new synchronous BPEL process named order_equipment.
2. Create a new XML schema named "orders.xsd". Define an element named "order" which inside has two elements: "name" and "quantity").

3. Drag a JMSadapter to the BPEL process.

4. Name the Service as JMS_ORDER.

5. Select Oracle Weblogic jms as the OEMS.

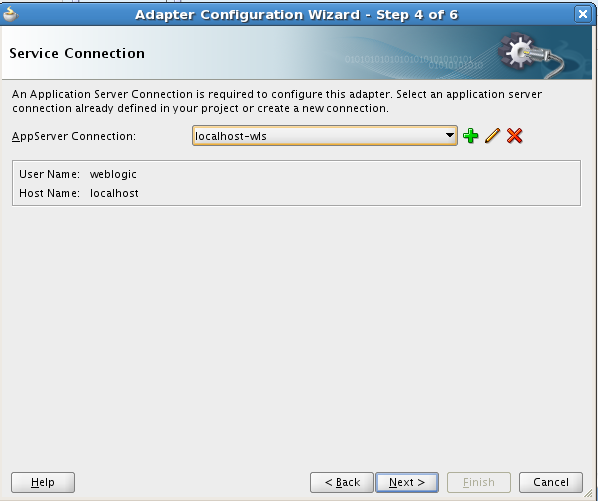

6. Choose the localhost-wls connection. (Be sure you already started the Weblogic Server)

7. Choose to define the schema later.

8. Select operation type as produce. Name the operation as Produce_Message.

9. Click on the browse destination name button.

10. Choose the B2B_OUT_QUEUE.

11. Indicate that the message is valid for one day and name the queue as eis/wls/Queue. VERY IMPORTANT: Do not misspell this JNDI name

12. Use the orders.xsd schema as the message schema.

13. Connect the created BPEL service to the new JMS adapter.

14. Perform the normal assignements to pass arguments from the input to the invoke arguments.
15. Deploy the web service and test one time.
16. In the Oracle BPM console select JMS Modules and then SOAJMSMODULE:
    http://localhost:7001/console

17. Select the B2B out queue.

18. Click on the queue checkbox.

19. Click on the message ID.

20. Note the message details.

References

Lucas Jellema, "Oracle SOA Suite 11g Handbook", McGraw-Hill, June 2011, pp. 386
